Gas Heater Factory
Gas heaters can quickly dispel the winter chill, Warms a 3 car garage in minutes. Applicable to greenhouse, flower room, industrial, farm, chick coop, work shop, shop, floor, home, hose, room, etc.
Zobo Gas Heater Manufacturer
The heater is easy to operate—simply connect it to your propane tank, turn it on, and it’s ready to use. No matter the size of the space, it delivers rapid heating and maintains stable performance even in extreme cold down to -30°C. The IPX4 waterproof housing prevents water splashes, and its robust construction ensures longer service life. With a propane consumption of only 0.71 kg per hour, it is highly energy-efficient. It is equipped with overheat protection, tip-over protection, and flame monitoring to ensure safety at all times. Our heaters are certified with CSA, CE, and SAA approvals, helping you confidently distribute them to global markets.
We provide ODM/OEM customization services for wholesalers, including customizing your brand logo,color, packaging, manual etc.

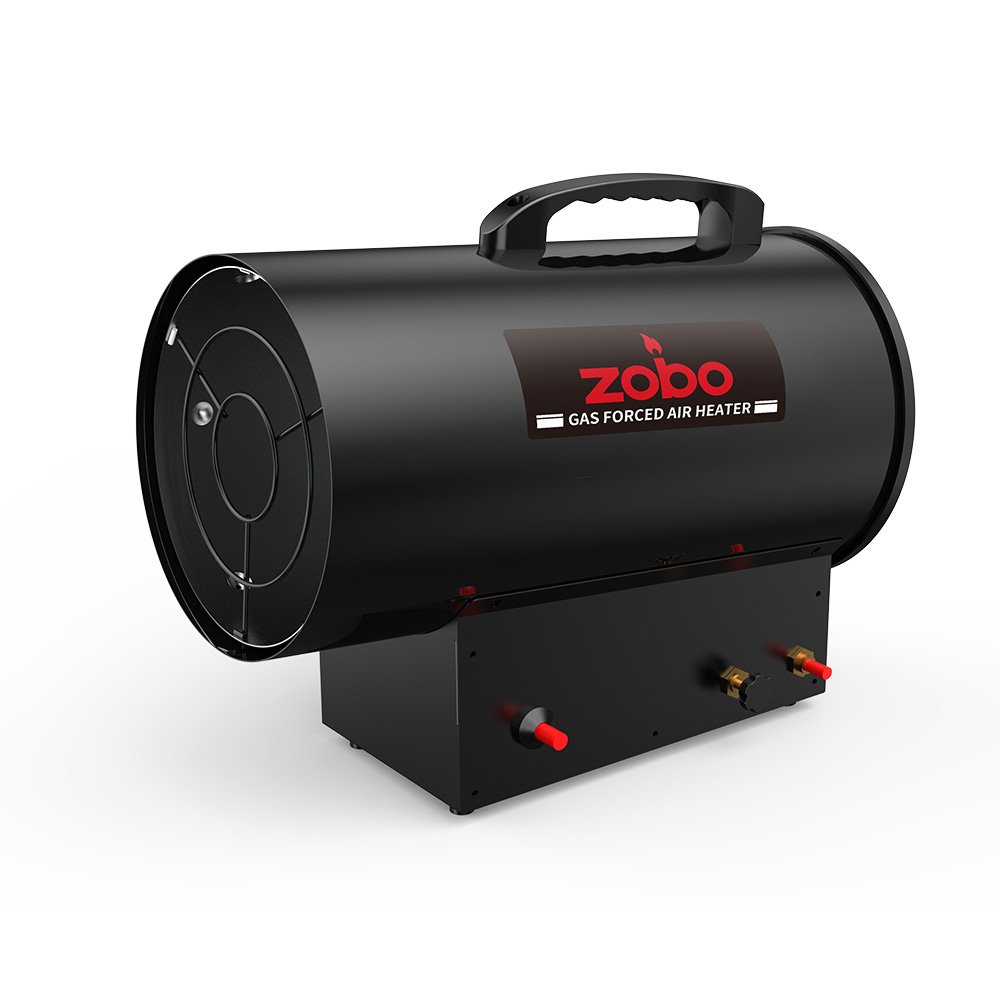

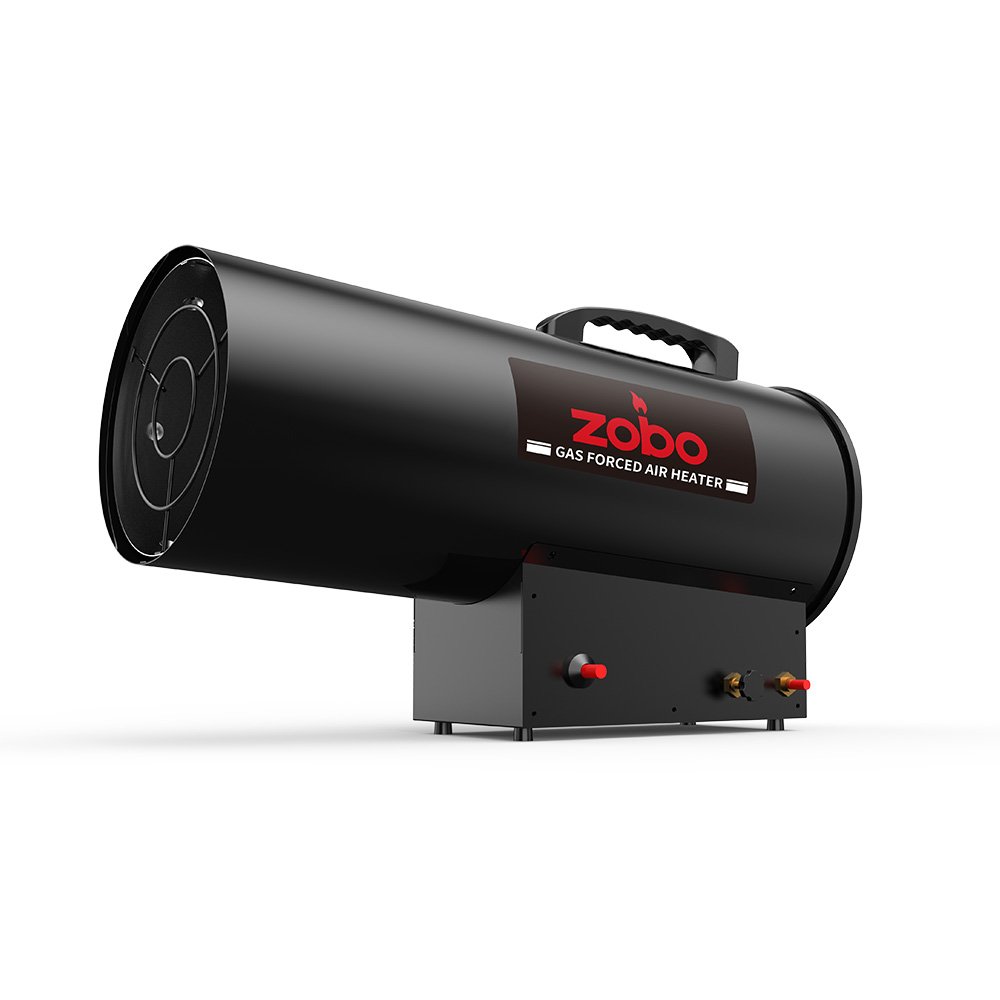

how to turn on gas heater？

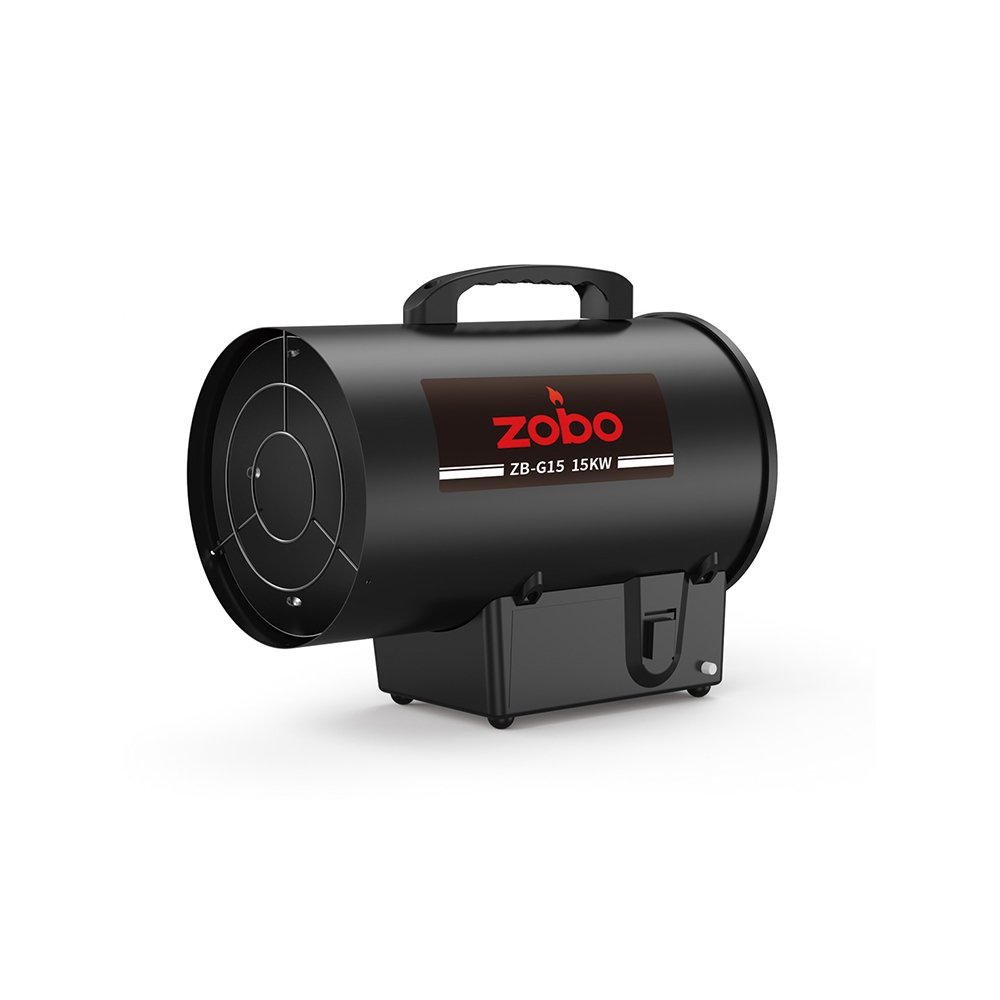

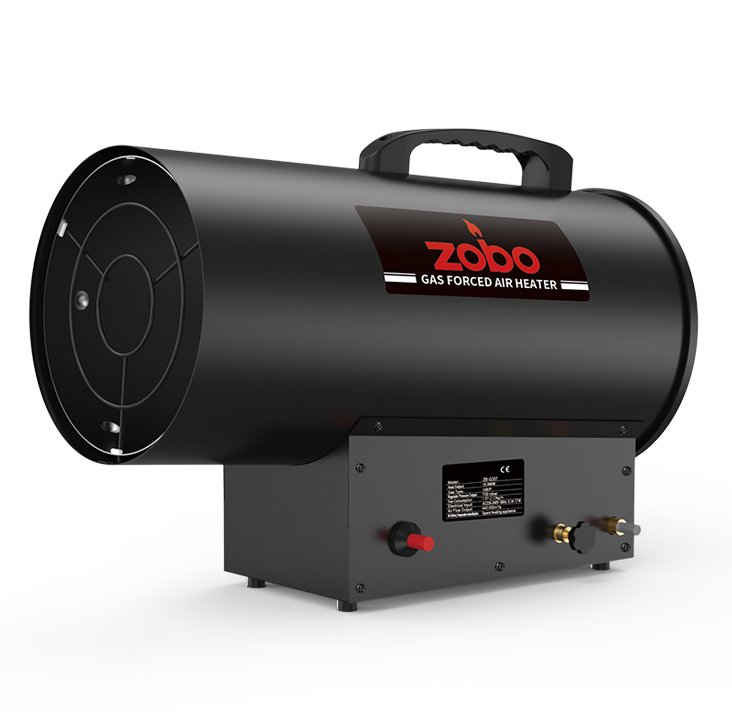

Applicable to ZB-G10, ZB-G15, ZB-G35, ZB-G50, ZB-G15T, ZB-G35T, and ZB-G50T

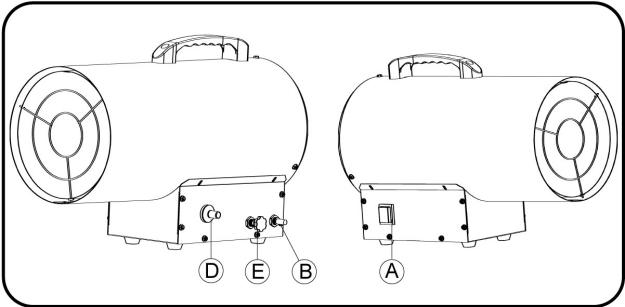

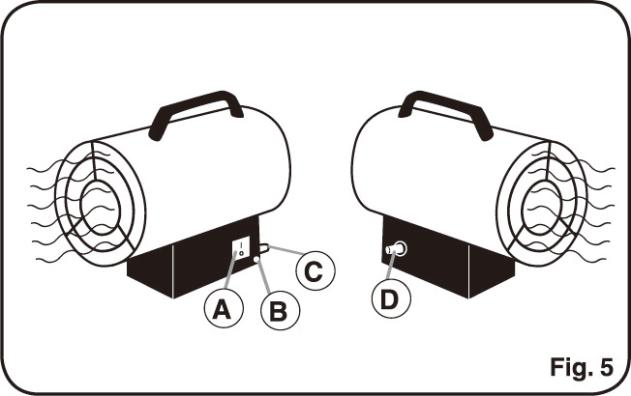

Start (Fig.5.):
– Plug in the mains lead to a wall socket.
– Press the ON/OFF switch (A) on , Let the motor fan run at least 30 seconds to check if the fan works properly and/or to purge any fuel gas left from the last use
– When the rubber hose attached to the gas inlet (C). Open the gas valve on the cylinder slowly. Be sure there is no gas leakage.
– Push in and hold the safety start valve button (B). Push ignition button (D) repeatedly until the burner lights.
-Turn relief adjustment knob (E) clockwise to decrease air flow . counterclockwise to increase .
If the heater does not light within 30 seconds, wait a minimum of 3 minutes before retrying the correct ignition circuit
After the burner lights, keep the safety start valve button depressed for at least 30 seconds then slowly release and the heater will continue to operate.

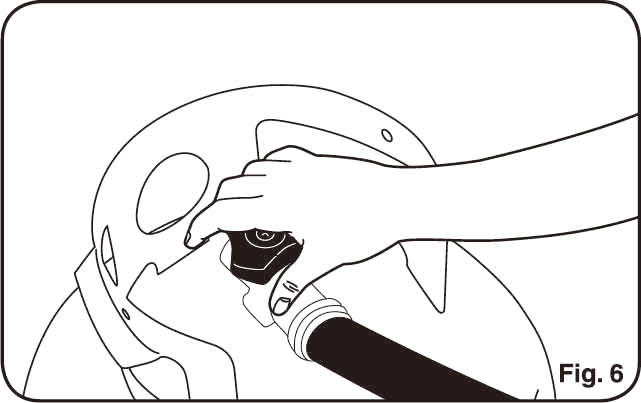

Stop Heater (Fig.6.):
– To switch off the heater, always closed the gas cylinder valve first.
– Let the motor fan run for at least 2 minutes until the heater has cooled down.
– Switch off the motor unplug the power cord.
– If the heater will not be used again shortly. Disconnect the gas hose from the heater first, then disconnect the hose and regulator from the valve on the gas cylinder.
how to turn on gas propane heater？

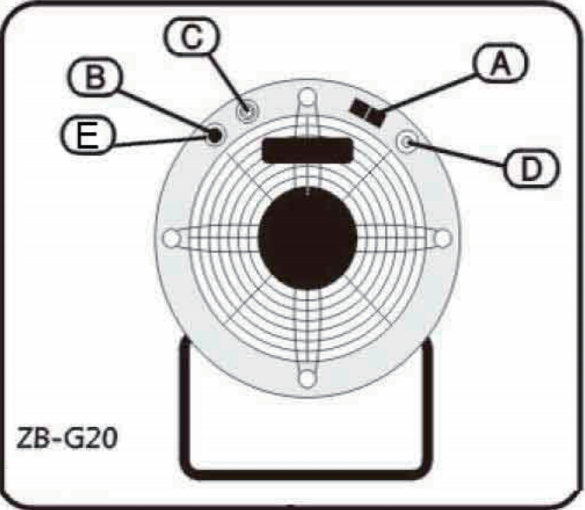

Applicable to ZB-G20, ZB-G30
-Plug in the mains lead to a wall socket.
-Press the ON-OFF switch (A) on. Let the motor fan run at least 30 seconds to check if the fan worksproperly and/or to purge any fuel gas left from the last use.
-With the hose attached to the gas inlet (B),open the gas valve on the cylinder slowly. Be surethere is no qas leakage.
-Push in and hold the safety start valve button (C).Push ignition button (D)repeatedly until the burnerlights.
If the heater does not light within 10 seconds,wait a minimum of 3 minutes before retrying thecorrect ignition circuit.After the burner lights, keep the safety start valvebutton depressed for at least 5 seconds then slowlyrelease and the heater will continue to operate.

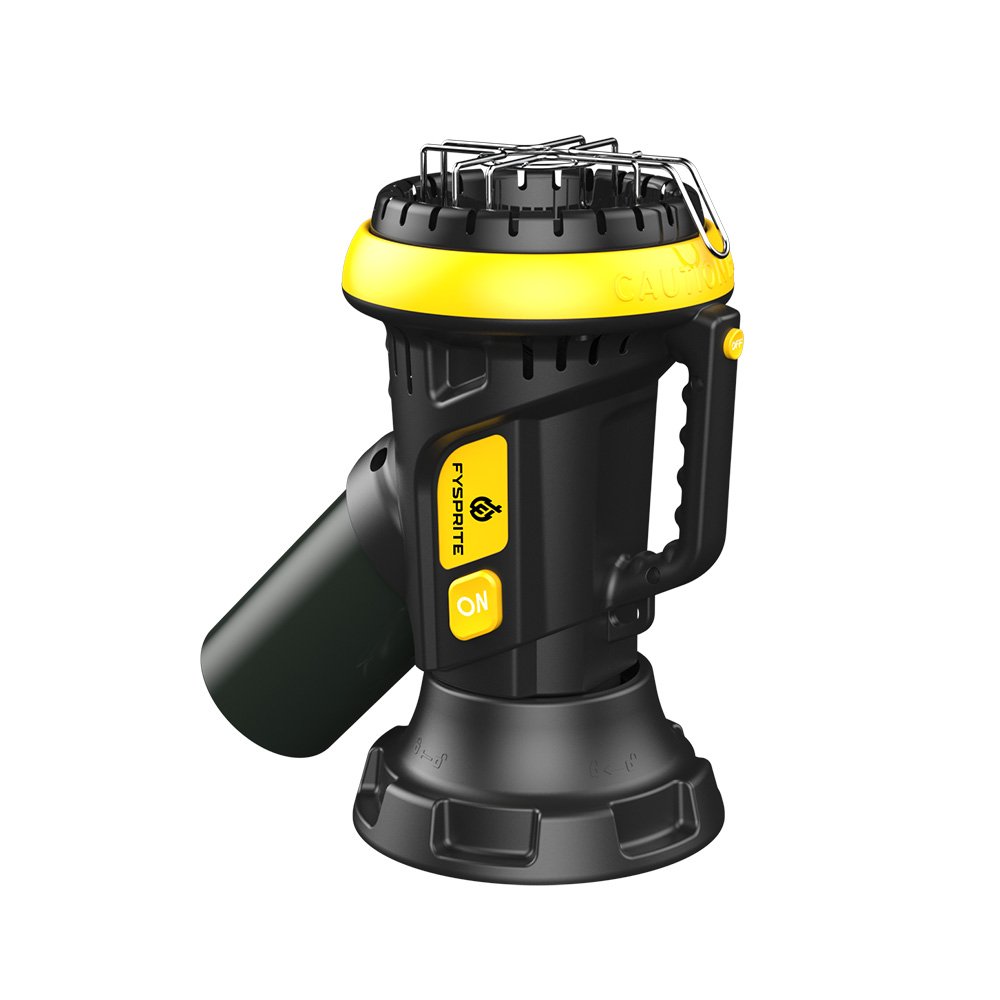

how to turn on outdoor gas propane heater？
Applicable to ZB-GB4 ZB-GB9
IMPORTANT: The heater must not be exposed to flammablevapors or liquids during lighting.

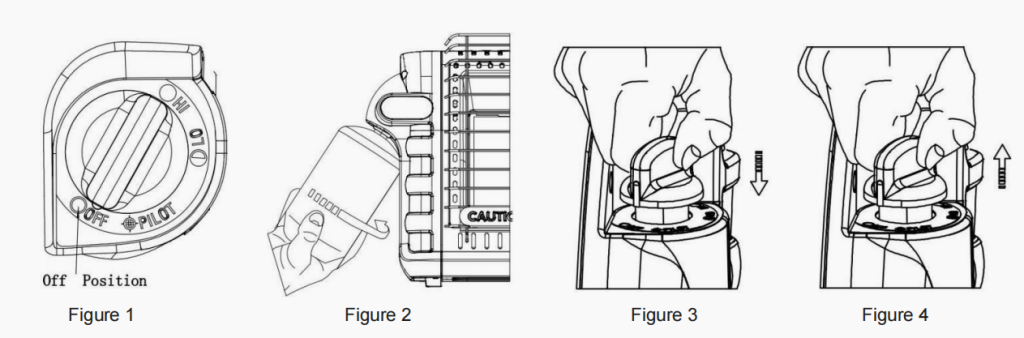

1. Make sure four-position Control Knob is in “OFF” position.
See Figure 1.
2.Swivel regulator outward for easy tank installation. Screwdisposable gas supply cylinder clockwise (from bottom) intoportable heater until hand-tight. See Figure 2. , Rotate the gascylinder counterclockwise to remove it.
3.Turn Control Knob counterclockwise to “PlLOT” position anddepress to light. See Figure 3.
4.lf heater does not light, hold down for approximately 30seconds; release and depress again. Repeat until pilotlights
5.After pilot lights, hold down for 30 -60 seconds and thenrelease knob. Knob should return to fully extended position.See Figure 4.
6.To operate heater slightly depress knob and gently turn tolock in the “Hl” position to light burner tile. Leave on“H!”position until burner tile turns bright orange.

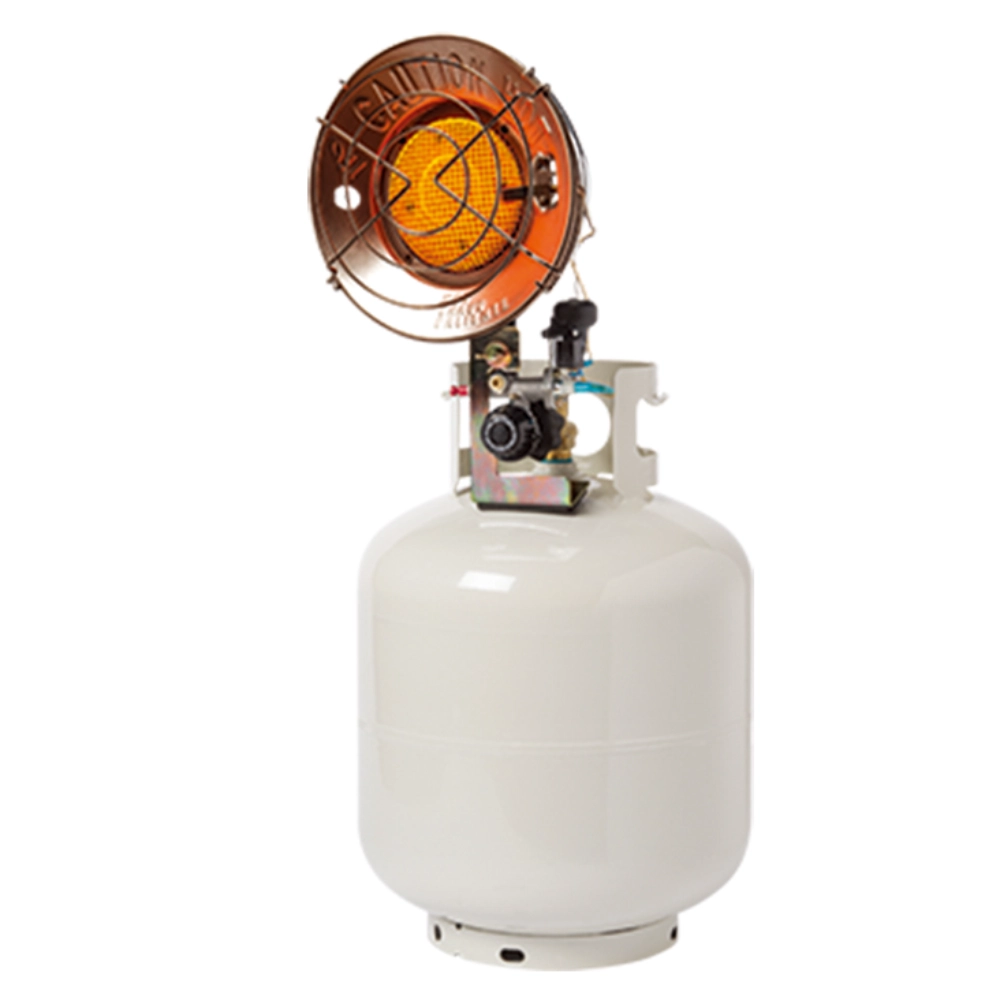

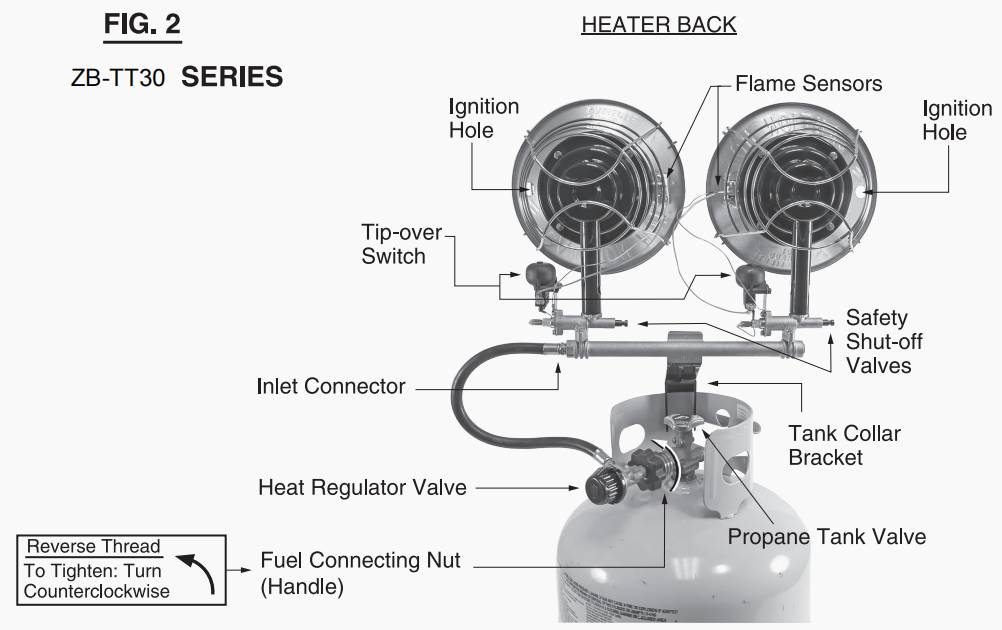

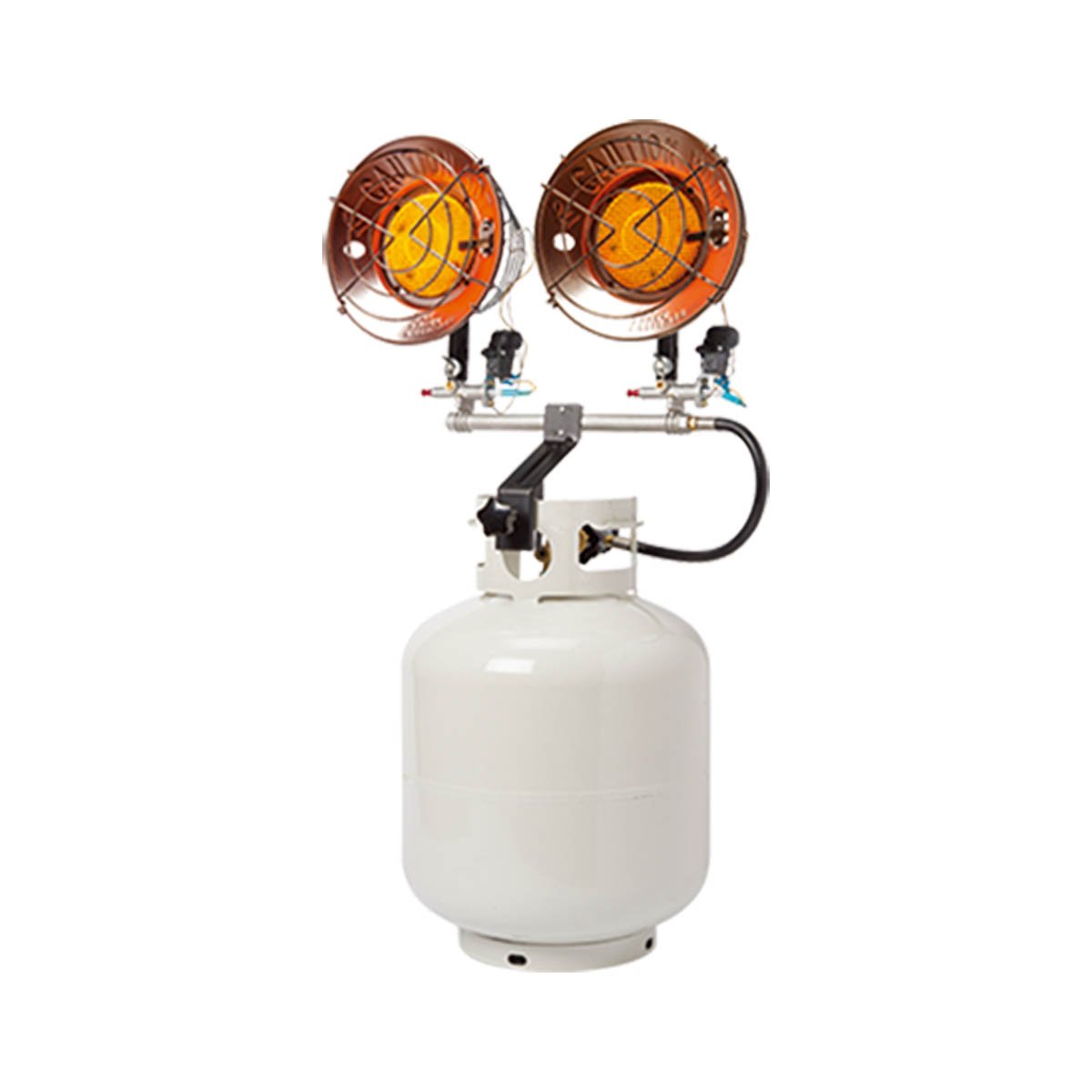

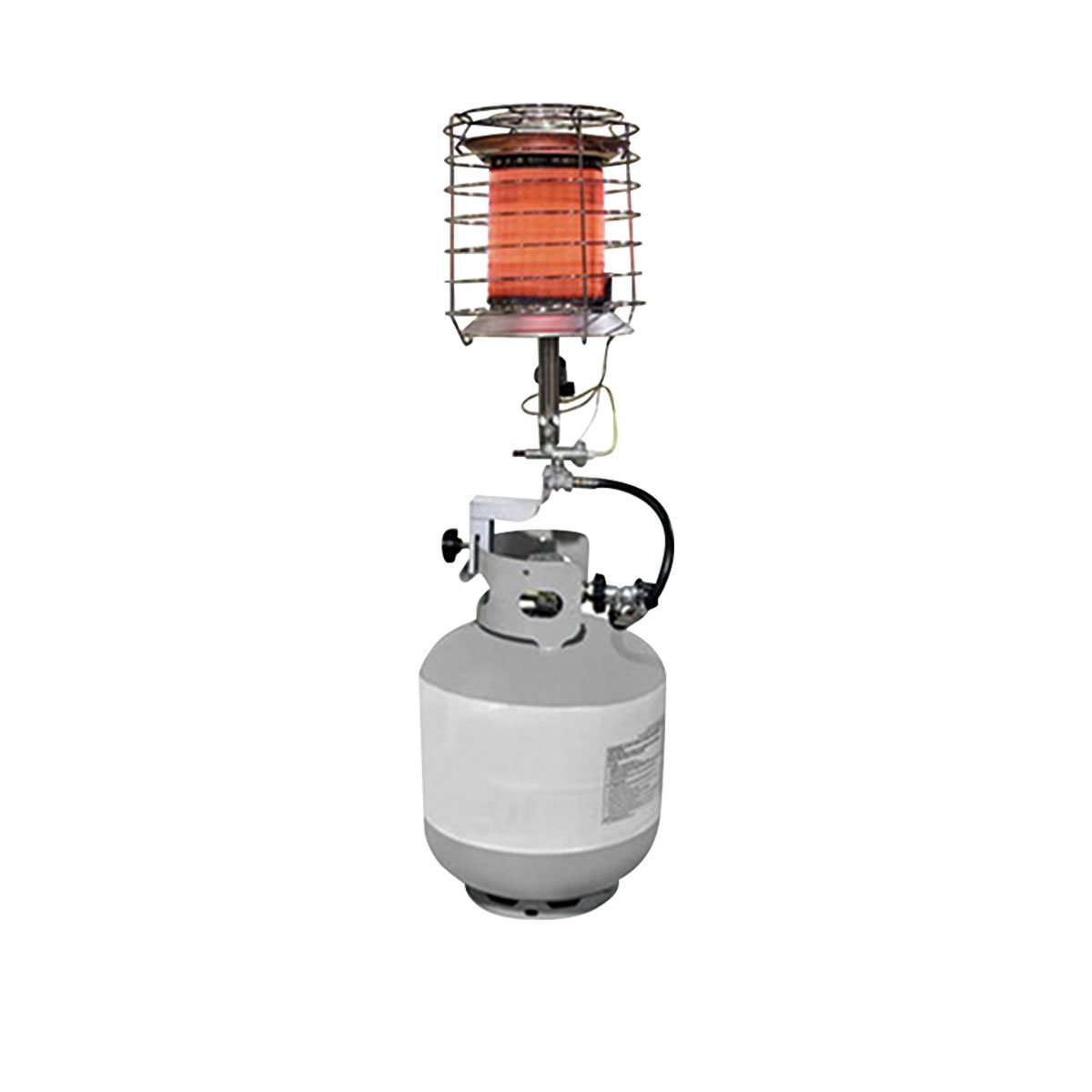

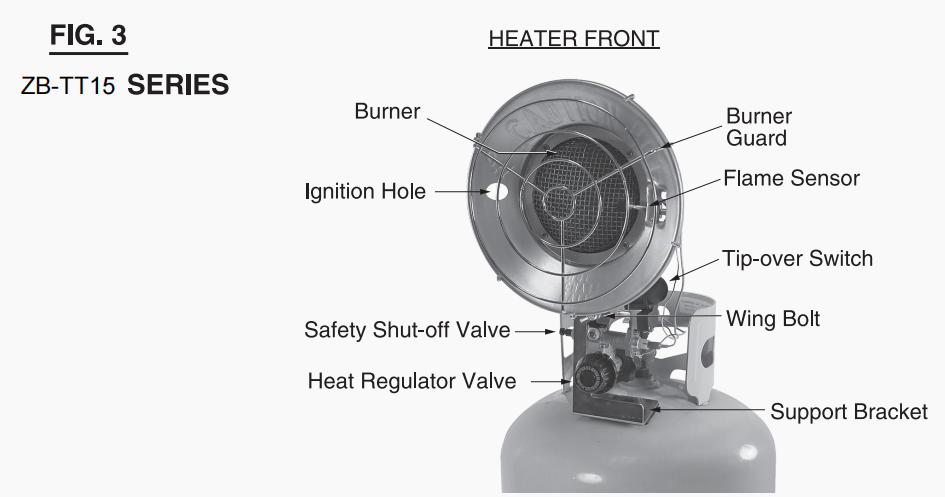

how to turn on Tank top gas heater？
Applicable to ZB-TT15, ZB-TT30
1.Open propane tank valve by turning itcounterclockwise
2.Turn heater regulator knob clockwise to the“High” position.(Fig.4)
WARNING: Stand to the side of unit whilelighting.
Do not stand or have any part of yourbody over or in front of heater while lighting.
3. Do not attempt to light one bumer off of the other. Useone match per burner. Locate ignition hole in side ofbumer,(Fig.5)Insert a lit match through ignition hole.Do not light from front of burner.
CAUTlON: Do not insert matchinto air inlet holes in mixing tube.
4. Press safety shut-off valve fully inwards to allow gas toflow (Fig. 4 and Fig. 5).
WARNING: Do not push in safety shut-offvalve plunger before inserting lit match.
5.Bumer should light. Mesh screen on bumner glows redwhen lit. After burner is lit,continue holding in safetyshut-off valve plunger(30 seconds) until heater stays lit。
6.If the burner does not liaht within 30 seconds, turnregulator knob to the OFF position. Wait at least five minutes for the gas to dissipate before re-lighting.
7.lf heater will not light after repeated tries, do notattempt to repair heater.
8. After bumer lights, tum the heater regulator knob to the desired heat setting: LOW, MED, or HI.
9. For dual burner models only : light both burners when maximum heat is needed. Useone burner to conserve fuel. Repeat steps to light second burner.
is it cheaper to heat with gas or electric?
Gas heaters are cheaper than electric heaters for the same power output because they primarily burn propane gas. For example, a 10kW gas heater only consumes 0.71kg of propane gas and 28W of electricity per hour, as the electricity is mainly used to power the motor. Even if it burns continuously for 8 hours overnight, it only requires 5.68kg of propane gas and 230W of electricity. Electric heaters, on the other hand, are completely different. A 10kW electric heater primarily uses electricity to heat the heating element and blow hot air. This results in higher power consumption. A 10kW electric heater requires 10 kWh per hour to operate. If you use it continuously for 8 hours a night, it will consume 80 kWh per day. Gas heaters are also cheaper for the same power. In Europe and America, electricity is usually more expensive than gas, so gas heaters are more economical than electric heaters. For different power ratings, if you need a heater for a small room, a smaller power heater will be cheaper than a larger one. For example, a 2kW electric heater is cheaper than a 5kW one.
